Ultra-High Precision Leveling: Advanced laser guidance system achieves millimeter-level flatness accuracy, meeting the strictest standards for industrial and commercial concrete floors.
Fully Automatic Operation: Intelligent automatic control system reduces manual intervention, ensuring consistent, error-free results and significantly lowering labor intensity.
Efficient & Time-Saving: One machine completes concrete paving, leveling, and compaction in a single pass, cutting construction time by 50%+ compared to traditional methods.
Durable & Stable Build: Heavy-duty steel frame and wear-resistant components ensure long service life, with reliable performance in continuous large-scale construction.

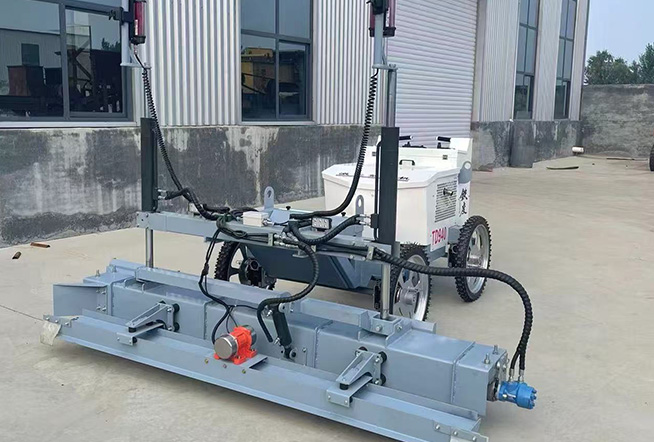

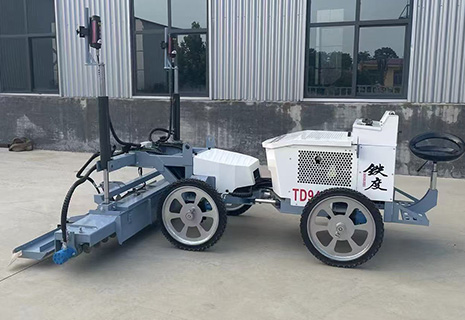

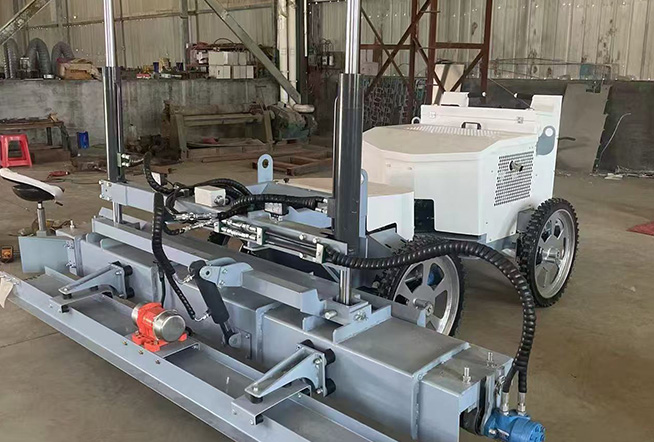

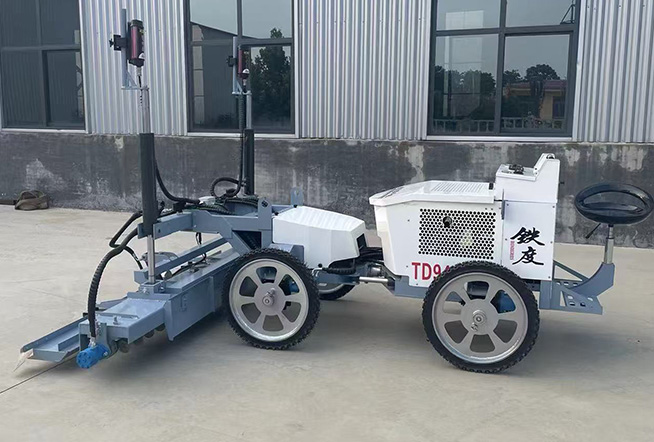

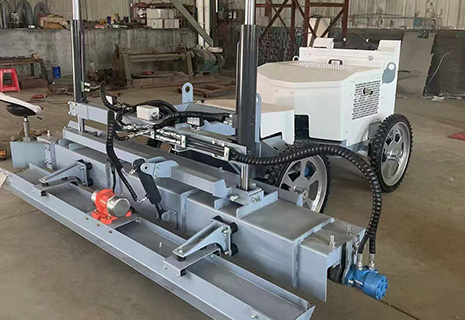

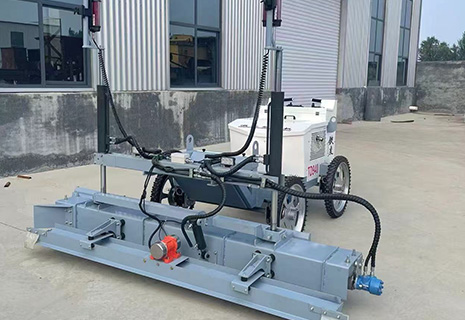

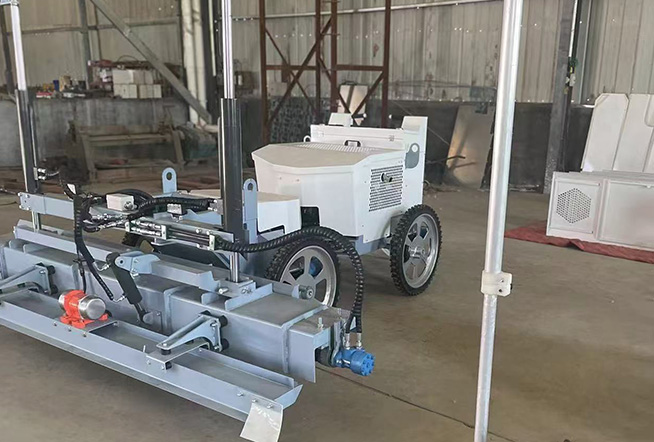

This professional concrete laser screed is a high-precision, intelligent construction equipment designed for large-scale concrete floor leveling. Integrated with advanced laser positioning and automatic control systems, it delivers ultra-flat, dense concrete surfaces with minimal labor. Ideal for industrial warehouses, commercial buildings, and large-area pavement projects, it ensures superior construction quality and drastically improves work efficiency.
Perfect for large industrial warehouses, logistics centers, commercial plazas, parking lots, and airport runways requiring ultra-flat floors.
Integrated vibration compaction system eliminates air bubbles, enhancing concrete density and durability, extending floor service life.
Reduces labor costs, shortens project cycles, and minimizes post-construction grinding/repair, delivering a fast return on investment.
| S940 Technical Parameters | |||
| Engine | Vibration method | Motor vibration | |
| Model Engine | Honda GX690 | Pave thickness | 30-300mm |
| Engine power | 23HP/3600rmp | Paving method | Auger paving |
| Start | Electric | Vibration frequency | 60HZ/Second |
| Parameters | 95#Gasoline 30L | Work efficiency | 300㎡-500㎡/Hour |
| Fuel consumption | 1.5L-2.0L/h | Hydraulic | AETER(Italy)/SUN (US) |
| Oil capacity | 1.4L | Laser control system | |
| Oil replacement time | ≤100/h | Elevation control | Micro-control hydraulic cylinder |
| Walking system | Microcomputr control | Danfoss ,USA | |
| Walking method | Wheeled | Control effect | Plane ,slope or double slope |
| Drive system | Hydraulic motor four wheel | Dimension & Weight | |
| Drive control | Hydraulic motor | Wheelbase | 1100mm |
| Walking speed | 3KM/h | Tyres dimension | 100/90-21 Pneumatic tyre |
| Forward /Backward | Manual | N.W. | 760Kg |
| Turn direction | Electric control | Concrete slump | 180±30 |
| Hydraulic capacity | 30L | Dimension | 3350×2500×1281mm |
